3804D
MXT
Features
● Used for field trunk of CATV, good waterproof design.
● 75Ω，5/8″KS-F trans-connector available.
● Adapt to 5-1000MHZ.
● Metal isolation netting, prevention of RF interference, good shield function.
● Pass power：10A AC/DC.

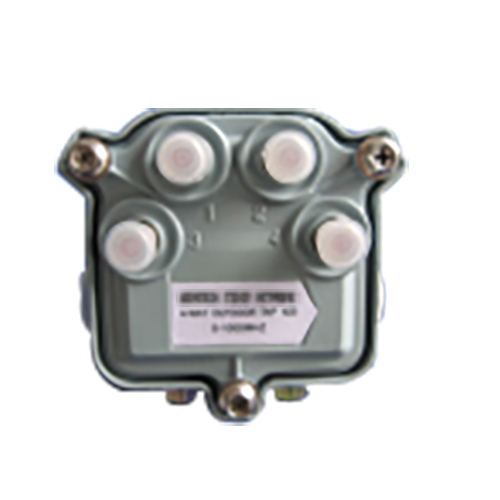

Outdoor 4 way TAP(half power pass) mode: 3804D-**
4-way Tap | ||||||||||||
Item | Parameters | |||||||||||
Tap | Normal | 8 | 10 | 11 | 14 | 17 | 20 | 23 | 26 | 29 | ||
Typical | 5MHz | 7.2 | 9.5 | 11.9 | 14.1 | 16.5 | 19.3 | 22.5 | 25.4 | 28.4 | ||
50MHz | 6.9 | 9.8 | 11.5 | 14.0 | 16.9 | 19.7 | 22.8 | 25.6 | 28.6 | |||
550MHz | 6.9 | 10.4 | 11.6 | 14.1 | 16.9 | 19.8 | 23.2 | 25.9 | 28.9 | |||
750MHz | 8.0 | 10.9 | 12.0 | 14.2 | 17.2 | 20.2 | 23.5 | 26.3 | 29.0 | |||
1000MHz | 8.6 | 11.4 | 12.3 | 14.1 | 17.5 | 20.6 | 23.7 | 26.6 | 29.8 | |||
Insertion Loss | 5MHz | / | ≤3.5 | ≤2.9 | ≤2.2 | ≤1.7 | ≤1.5 | ≤1.2 | ≤1.1 | ≤1.0 | ||
50MHz | / | ≤3.8 | ≤3.2 | ≤2.7 | ≤1.9 | ≤1.6 | ≤1.4 | ≤1.3 | ≤1.1 | |||
550MHz | / | ≤4.0 | ≤3.5 | ≤3.0 | ≤2.4 | ≤1.8 | ≤1.5 | ≤1.4 | ≤1.3 | |||
750MHz | / | ≤4.5 | ≤4.0 | ≤3.5 | ≤2.8 | ≤2.2 | ≤2.0 | ≤2.0 | ≤1.8 | |||
1000MHz | / | ≤5.0 | ≤4.5 | ≤4.0 | ≤3.2 | ≤2.8 | ≤2.5 | ≤2.4 | ≤2.2 | |||
Reverse Isolation | 5-50MHz | / | ≥27 | ≥28 | ≥28 | ≥28 | ≥30 | ≥32 | ≥34 | ≥36 | ||
50-550MHz | / | ≥24 | ≥25 | ≥25 | ≥25 | ≥28 | ≥30 | ≥32 | ≥32 | |||
550-750MHz | / | ≥22 | ≥23 | ≥24 | ≥24 | ≥26 | ≥28 | ≥28 | ≥28 | |||
750-1000MHz | / | ≥22 | ≥22 | ≥22 | ≥22 | ≥24 | ≥26 | ≥26 | ≥27 | |||
Tap-Tap Isolation | 5-50MHz | ≥27 | ≥27 | ≥28 | ≥28 | ≥28 | ≥30 | ≥32 | ≥34 | ≥36 | ||
50-550MHz | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥28 | ≥30 | ≥32 | ≥32 | |||
550-750MHz | ≥23 | ≥23 | ≥23 | ≥24 | ≥24 | ≥26 | ≥28 | ≥28 | ≥28 | |||
750-1000MHz | ≥22 | ≥22 | ≥22 | ≥23 | ≥22 | ≥25 | ≥26 | ≥26 | ≥27 | |||
Return | 5-50MHz | ≥18 | ≥18 | ≥20 | ≥20 | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 | ||
50-550MHz | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |||
550-750MHz | ≥16 | ≥16 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | ≥17 | |||
750-1000MHz | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 | |||
