OPPC Cable
MXT
Model Number | Power Fiber Optical Cable OPPC |
Type | Coaxial |
Fiber Type | Single Mode |
Application | Outdoor Aerial |
Certification | ISO9001 |

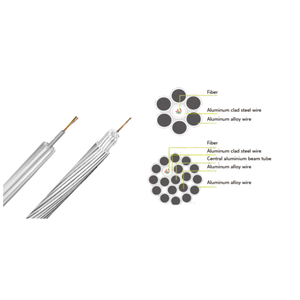

The OPPC fiber optical cable's Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS)or mix ACS wires and aluminum alloy wires Aluminum wires / Aluminum alloy wires Optical fibers.
Aluminum fiber optical cable's have the dual functions performance functions of phase conductors with
communication capabilities.
The Characterisics of OPPC fiber optical cable
● Replacing one or several wires of the traditional conductor with stainless steel tube and strand the tube with AS/steel wires and AL/AA wires.
● Replacing one of the three phase conductors with OPPC, thus to form a transmission line which consists of one OPPC
and two phase conductors.
● OPPC can meet durative high temperature resistant which verified by Temperature Cycling test and Short Current test.
● OPPC is applied to middle & high voltage power lines without ground wires such as 10kV, 35kV,66kV and so on.
● Telecommunications for middle & high voltage power lines in urban and rural areas;Providing optical cables for building distribution automation station.
The technical data of OPPC fiber optical cable
Total number of fiber cores | 2-12 | |
Outer diameter (mm) | 7.8mm~8.5mm | |
Cable Max unit weight (kg/km) | 65+ | |
Allowable pull force (N)
| Long-Term | 600 |
Short-Term | 1500 | |
Allowable crush strength (N/100mm)
| Long-Term | 300 |
Short-Term | 1000 | |
Min bending radius (mm)
| Static | 10 times of cable external diameter |
Dynamic | 20 times of cable external diameter | |
Application of temperature | -40°C-60°C | |
The optic fiber Characteristics | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A,B,C,D) | B1.1:Conventional fiber | ||
G.653 | B2: Zero dispersion shifted | |||
G.654 | B1.2 :Cut-off wavelength shifted | |||
G.655 G657 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
Note:
1. Only a part of OPPC fiber optical cable are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
