Product Name | 12/24/36/48 core Stranded Stainless Steel Tube Optical Ground Wire Opgw | Installation | Power Transmision Line |
Application | Outdoor Aerial Cabling System | Fiber Type | Single Mode/multi Mode/G.652D/G.655 |
OPGW Type | Central/Stranded/PBT Loose Tube/Al-covered SUS Tube | Surround Layer | Single/Double/ Three Layer |
Tube Material | Stainless Steel Tube/Al-covered SST/Aluminum Tube | Wire Material | Aluminum Covered Steel Or Aluminum Alloy |
Cable Length | 2km-5km Or As Customerized | OEM | Acceptable |
Description
OPGW Cable, Optical Fiber Composite Overhead Ground Wire, also known as Fiber Composite Overhead line. The optical fiber is placed in the ground line of overhead high voltage transmission line and used to form the optical fiber communication network on the transmission line. This structure has the double function of ground wire and communication, commonly known as OPGW optical cable.

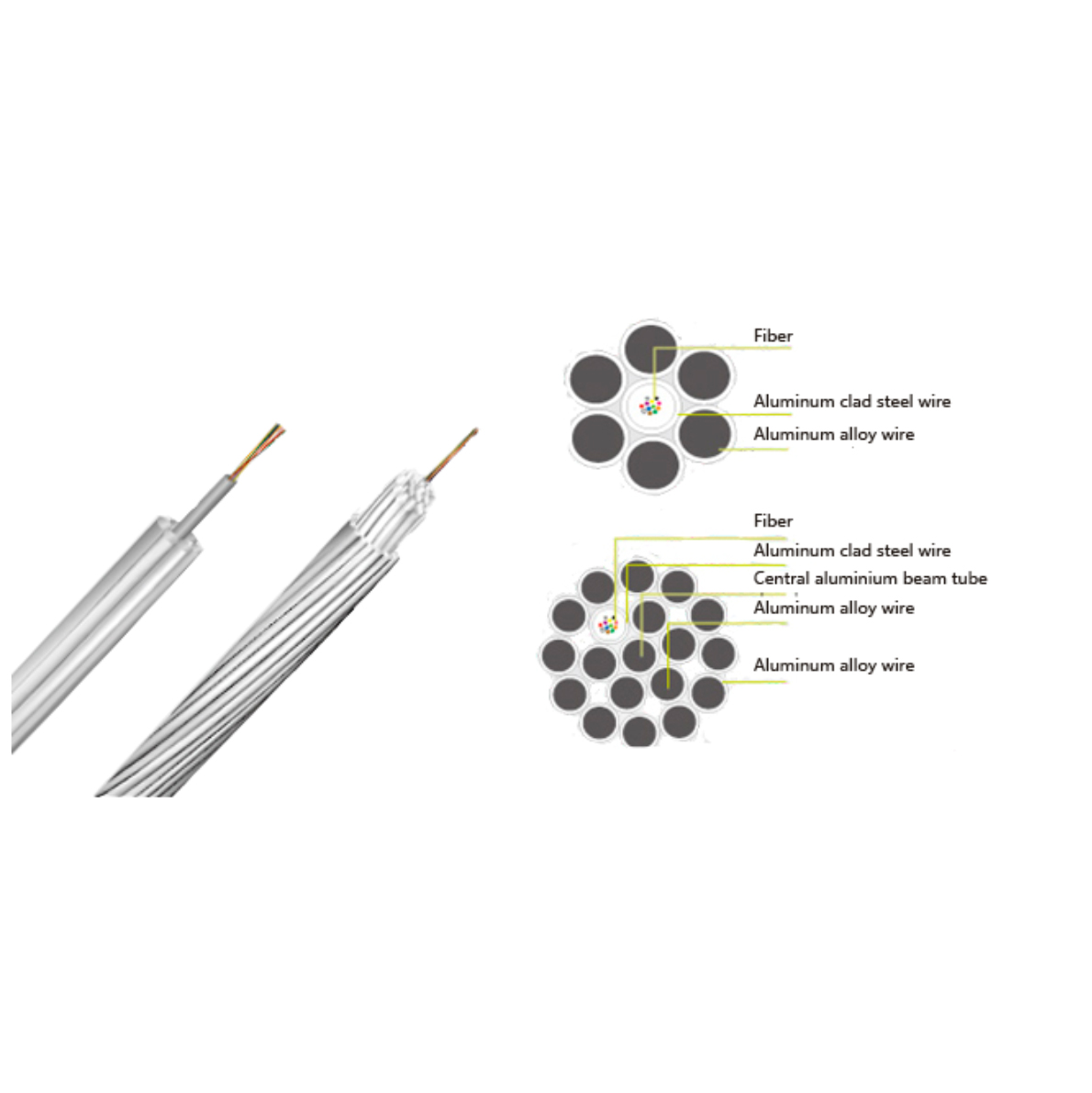

1.Central Tube Optical Ground Wire (OPGW)
Description
The Central Tube Optical Ground Wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires
and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.
Typical design for Single Layer
Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit Capacity(KA2s) |
|
|
|
|
|
|
OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 |
OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 |
OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 |
OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 |
OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 |
OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 |
OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 |
OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 |
OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 |
Typical design for Double Layer
Specification | Fiber Count | Diameter
(mm) | Weight
(kg/km) | RTS
(KN) | Short Circuit
(KA2s) |
OPGW-96[121.7;42.2] | 12 | 13 | 671 | 121.7 | 42.2 |
OPGW-127[141.0;87.9] | 24 | 15 | 825 | 141 | 87.9 |
OPGW-127[77.8;128.0] | 24 | 15 | 547 | 77.8 | 128 |
OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |

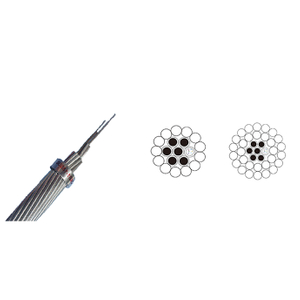

2. Stranded Optical Ground Wire (OPGW)
Description
The Stranded Optical Ground Wire (OPGW) is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.
Typical design for Double Layer
Specification | Fiber Count | Diameter (mm) | Weight(kg/km) | RTS (KN) | Short Circuit Capacity(KA2s) |
OPGW-232(343.0;191.4) | 28 | 20.15 | 1696 | 343 | 91.4 |
OPGW-254(116.5;554.6) | 26 | 21 | 889 | 116.5 | 554.6 |
OPGW-347(366.9;687.7) | 48 | 24.7 | 2157 | 366.9 | 687.7 |
OPGW-282(358.7;372.1) | 96 | 22.5 | 1938 | 358.7 | 372.1 |
Characteristics
Stranded Stainless Steel Tube OPGW
● High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.
● Engineering support supervising and providing its own line of accessories hardware.
● Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lighting
● To construct OPGW must cut power,resulting in greater loss,thus OPGW must be used in constructing high pressure line over 110kv.
● Apply to the transformation of old lines.
Central (Al-covered) Stainless Steel Tube OPGW
● High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.
● Engineering support supervising and providing its own line of accessories hardware.
● Larger tensile strength and fault current capacity to reach a better balance of electrical and mechanical performance.
Aluminum Tube OPGW
● Good anti-corrosion performance.
● Material and structure are uniform,good resistance to vibration fatigue.
● Short circuit current has small effect on the optical fiber transmission properties.
● Good anti-lightening performance.
