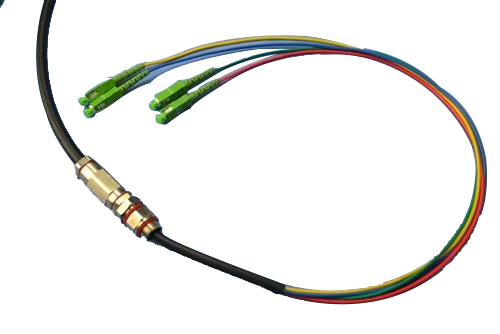

Multi-core Waterproof Pigtail

  • MXT

Applications

Switching between trunk line and distribution line

Connection of trunk line

High integrated equiement and devices

High density cable wiring system



Features

4-48core available

0.9, 2.0, 3.0 fanout available

Small volume, high fiber density


Item

SingleMode

MultiMode

Insertion loss

≤0.2dB

≤0.3dB

Return loss

PC≥50dB, APC≥55dB, UPC≥60dB



Insert-pull test

1000 times

Repeatability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40℃~ +85℃

Ceramic ferrule spec

125.5um concentricity deviations:≤1μm

127um concentricity deviations:≤3μm

Suitable fiber

9/125μm

50/125μm, 62.5/125μm



Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
