MXT600-108F Series
MXT
Overview
MXT600-108F series EPON ONU is designed for FTTB/FTTO application. MXT600-108F series has 8 10/100BASE-T ports , 1 PON port. They support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio and 20km distance.
They work together with EPON OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
MXT600-108F series supports POE power supply mode, which is suitable for passive installation; At the same time, it supports BBU battery backup power management, large current quick charge, over charge and floating charge. When the external power supply network broke, the battery power supply could work.
It designed based ZTE xPON chipset. The chipset suport GPON/EPON/P2P mode ； comply with G.984、G.983 standards，good in compatible in xPON.
The MXT600-108F Series ONU features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the MXT600-108F Series ONU provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Features
● Full compatible with IEEE802.3ah
● Support port-based rate limitation and bandwidth control;
● Up to 20KM transmission Distance
● Support Dynamic Bandwidth Allocation (DBA)
● Support ONU auto-discovery/Link detection/remote upgrade of software;
● Support power-off alarm function ,easy for link problem detection
● Support broadcasting storm resistance function
● Support ACL to configure data packet filter flexibly
● Specialized design for system breakdown prevention to maintain stable system
● Support software online upgrading
● EMS network management based on SNMP ,convenient for maintenance

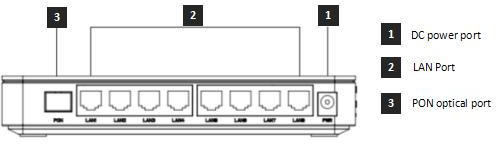

Product interface and LED definitions
Indicator | Description | ||
1 | LAN1-8 | LAN port status | On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up; |
2 | LOS | EPON optical signals | On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
3 | PON | ONU Register | On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT; |
4 | PWR | Power status | On: The ONT is power on; Off: The ONT is Power off; |
Specification
Item | Parameters | Specification |
Interface | PON Port | 1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM |
Ethernet Port(LAN) | 8*FE Auto-negotiation RJ45 ports Full Duplex / Half-Duplex Auto-MDI/MDI-X Transmission Distance 100 Meter | |
Power Supply Port | 12V DC supply power | |
Management | Network Management | Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Management Function | Status monitor, Configuration management, Alarm management, Log management. (No management on each Ethernet port) | |
Environmental Specifications | Shell | Plastic casing |
Power | External 12V 0.5A AC/DC power supply adapter Power consumption:<5W | |
Dimensions | 170mm(L) x130mm(W) x30mm (H) 0.3kg | |
Environment | Operating Temperature：0～50℃ Storage Temperature：-40～85℃ Operating Humidity：10%～90%(Non-condensing) Storage Humidity：10%～90%(Non-condensing) |
Application
Solution：FTTO/FTTB
Business：Broadband Internet、IPTV、VOD、IP Camera
Ordering Information
Product Name | Product Model | Descriptions |
EPON ONU | MXT600-108F-HZ500 | 8*FE Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter, No POE PD function. |
EPON ONU | MXT600-108FP-HZ500 | 8*FE Ethernet interface, 1 EPON interface, plastic casing, With 802.3af POE PD function. |
EPON ONU | MXT600-108FDP-HZ500 | 8*FE Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter, With 802.3af POE PD function. |
