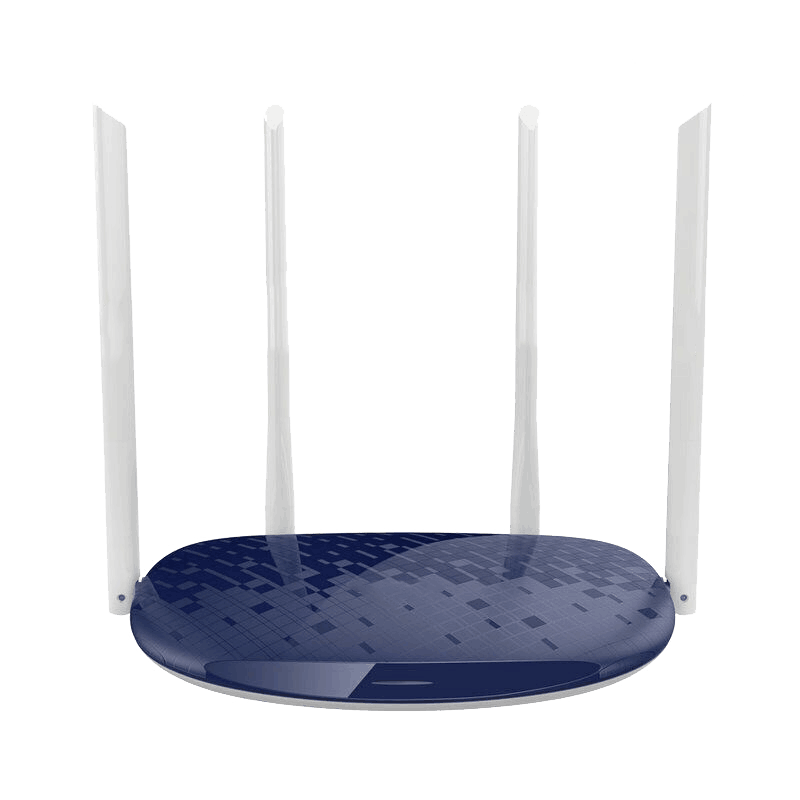

MXT-R520-12CD1M
MXT
Description
MXT-R520-12CD1M router applies MTK chip, with main frequency up to 580MHZ, equipped with large capacity DDR2 RAM and high-speed SPI Flash, with stable performance. Wireless signals cover more than 50 meters in theory in the open environment, with 30 contacts in theory. The product adopts mature, stable and expandable SDK system to provide intuitive, simple and easy-to-use interface for setting.Integrate a variety of network application functions to meet the needs of various routing applications, with a high cost performance.
Features
● MTK chip, main frequency up to 580Mhz, high and stable performance
●Support IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac Wireless standards
● Support IEEE 802.3,IEEE 802.3u standard,1个10/100M Ethernet adaptive WAN interface, support Auto MDI/MDIX
● Three 10/100M Ethernet adaptive LAN interface, support Auto MDI/MDIX
● Wireless rate up to 1200Mbps
● Support RESET function
● Support USB2.0；
● Support WEP, WPA,WPA2 safety encryption mode;
Specification
Item | Option | Parameter |
Interface | WAN | 1* 10/100Base-Tx； |
LAN | 3* 10/100Base-Tx； | |
USB | 1* USB2.0 interface； | |
Power Supply | DC power interface； | |
Wireless | Frequency Range | 2.400-2.4835GHz/5.1-5.9GHz |
Standards | IEEE802.11a/b/g/n； IEEE802.11ac Wave2； | |
Transmit Power | 11n: 17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 16dBm±1dBm 11ac: 14dBm±1dBm | |
Receiver Sensitivity | 11n: -82dBm 11g: -82dBm 11b: -76dBm 11a: -82dBm 11ac: -76dBm | |
Rate | 802.11ac/n: 15Mbps-867Mbps (80MHz) 6.5Mbps-300Mbps (40MHz) 802.11n: 6.5Mbps and 433Mbps 802.11a/g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps | |
Software Function | Network Function | Support port forwarding Support DMZ Support client filter Support MAC-Address filter Support URL filter Support DDNS Support bandwidth control Support DHCP Support static route Support MAC-Address clone |
Management Function | Support WEB configuration management Support configuration file upload and download Support software upgarde | |
Wireless Security | WPA/WPA2（WPA-PSK, WPA-EAP） WEP 64/128 bit Encryption Channel support AES encryption | |
Hardware Function | Antenna Type | Four 5dBi 2*2 MIMO outside antennas |
Memory | DDR2 128MB | |
FLASH | SPI 16MB | |
Power Supply | 12VDC-1A | |
Consumption | < 9W； | |
Structure | Dimensions | 165mmX133mmX21mm |
Weight | 0.5Kg | |
Installation | Wall or desktop | |
Operating Temperature | 0～50℃ | |
Relative Humidity | 5～95％(non condensation) | |
Storage Temperature | -40～85℃ |
Application
● Office work wireless
● Shopping malls, hotels, families wireless coverage;
Order Information
Product Type | Product Model | Decription |
Dual-frequency AC Router | MXT-R520-12CD1M | 1*10/100 Ethernet adaptive WAN interface, 3*10/100 Ethernet adaptive LAN interface,1 USB interface, support 2.4G and 5G , 12V DC Power supply |
