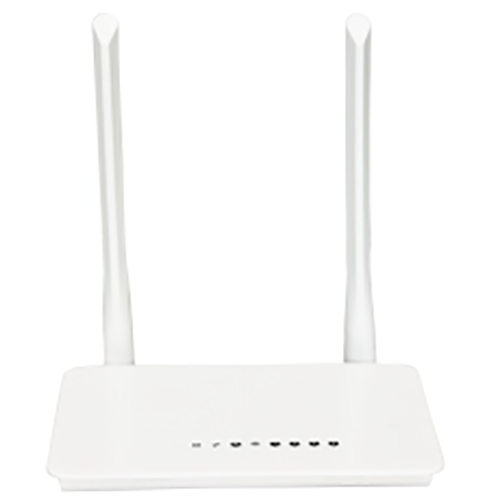

MXT-R200-1432 RB
MXT
Description
The MXT-R200-1432 RB is a networking compatible router, it integrated a 300M wireless access point , a 4port switch, firewall, allows you to quickly set up a 300Mbps wireless network, and lets your computers share a high-speed DSL or Cable Internet connection.
The 802.11n wireless router is compatible with IEEE802.11b/g/n standard, which supports data rate up to 300 Mbps in 2.4 GHz band.
Features
● 300M Wireless Router with Extended Range
● Built-in 4-port 10/100M Switch
● Supports far-distance transmission, 150 meters indoor, 400 meters outdoor (depends on the environments around)
● Supports PPPoE, Dynamic IP, Static IP, PPTP, L2TP Cable Internet access
● SST technology dramatically increases link robustness and stability
● CCA technology enhances your signal stablility by automatically avoiding channel conflicts
● Wireless security encryption easily at the push of the QSS button
● WDS wireless bridge provides seamless bridging to expand your wireless network
● Supports QoS function
● IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
Specification
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Wireless Signal Rates With Automatic Fallback | 11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
Frequency Range | 2.4-2.4835GHz |
Wireless Transmit Power | 17dBm(EIRP) |
Modulation Type | DBPSK,DQPSK,CCK, OFDM |
Receiver Sensitivity | 270M: -68dBm@10% PER 135M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER |
Wireless Security | 64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Interface | 4 10/100M LAN Ports and 1 10/100M WAN Port |
Antenna Type | 5dB Omni-directional Dual Antenna |
Power supply | Input AC100~240V,output DC/12V/0.5A |
Operating Temperature | 0°C~50°C |
Storage Temperature | -40°C~70°C |
Relative Humidity | 10% ~ 90%, non condensation |
Storage Humidity | 5%~95% non-condensing |
Weight | 0.2kg |
Dimensions | 133mm×83mm×33mm |
