Description

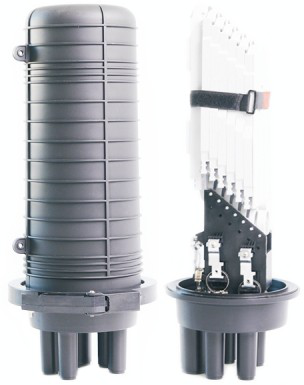

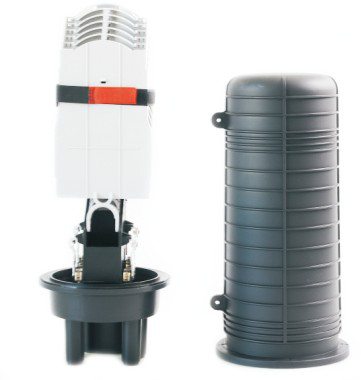

DOME type fiber optic splice closure is also called as vertical closure, it is suitable for FTTH accessing. The input and output are on the same side. An oval hole and four round holes facilitates the operation.It is suitable for aerial, underground, conduct installation.
Features
● Heat shrinkable sealing structure.
● High quality industrial plastic body material.
● One oval hole and four round holes for cable entrance.
● Suitable for cable diameter 5mm-38mm,
● Support aerial,underground,pipeline,man holes,hand holes
● Protection level reaches IP68.
● 360 degrees access,fiber bending > 40mm.
● Maximum capacity: 144F single or 432F ribbon.
● Number of trays: 6 pcs x 24F.
Configuration
Material | Field Size | Max Capacity | Cable Entrance | Weight | Color |
Strengthen Polymer Plastic | H*D(mm) 470*210 | Splice Cores
144 cores | Trays 6x24F | 1 x oval port 4 x round port | 2.3kg | Black |
Application
● Aerial cable installation
● Pole mounted installation
● Wall mounted installation
● Man hole and hand hole installation
● FTTH access layer
Standard Accessories
installation bolts and nuts, Protection sleeves, Cable entry rubber, Cable tube.
Optional Accessories
Bracket for wall,pole,pressure valve...etc.
