MXT-024A
MXT
General Introduction
MXT-024A is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.
The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.
Specification
Dimension（mm） | 380×245×130 | Max. capacity(Single fiber) | 16 |
Weight（kg） | 4.5~5 | Sealing type | Mechanical |
Cable ports | 1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm. | Single splice tray capacity(Single fiber) | 16 |
Splice tray quantity | 2pcs |

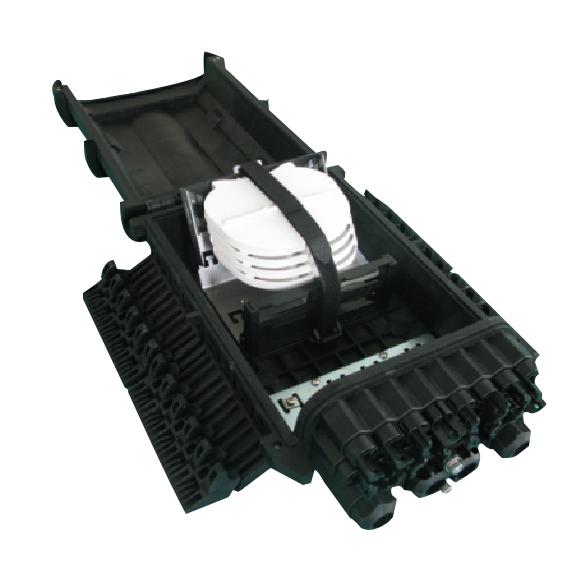

Structure

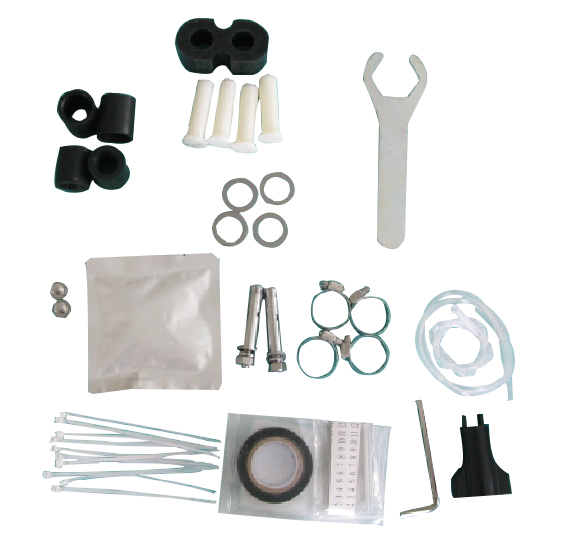

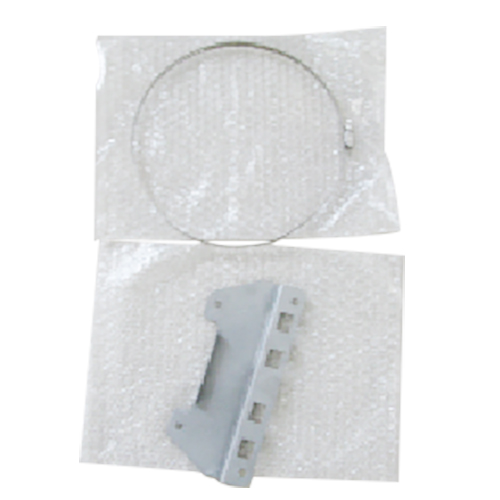

Closure and accessories
