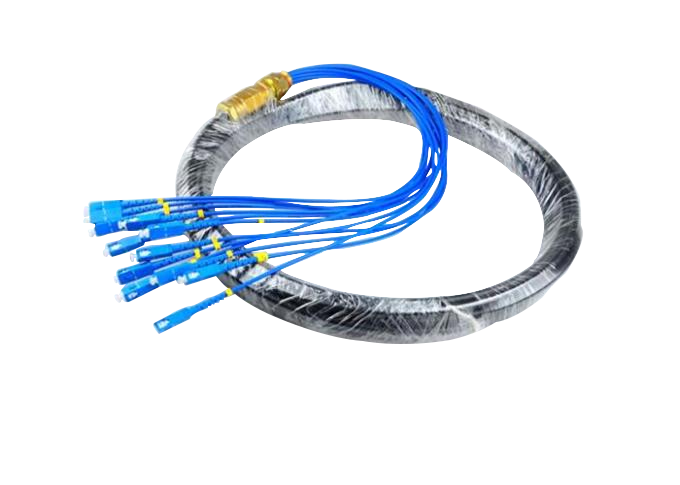

CATV Network Optical Fiber Pigtail 12 Core Fiber Outdoor SC Pigtail Waterproof

Availability:
CATV Network Optical Fiber Pigtail 12 Core Fiber Outdoor SC Pigtail Waterproof
  • MXT


Detailed Product Description

Jacket Of Cable:

LSZH & PVC

Wavelength:

1310/1550

Fiber Type:

Singlemode

Insert Loss:

UPC<=0.2dB

Repeatabiity:

±0.1dB

Cable Diameter:

9.8 ,11.8

CATV Network Fiber Optic Pigtail 12 Core Fiber Outdoor SC Pigtail Waterproof


Features

● The number of the core is customized
● Easily mounted and high reliability
● Standard 5/8-24 aluminum entry fitting is sealed with epoxy to protect against water penetration and provides>100IBS of cable pull-outer jacket.
● 2mm subunits guarantee maximum clearance inside node and amplifier housings
● Waterproof, suitable for adverse outdoor environment
● Compliant with: IEC, JIS, Telcordia
● Customer length
● Minimum loss


Applications

● Long Distance Optical Communication System
● FTTP
● Telecommunication Network
● CATV Network
● Local Area Network
● Active device termination
● Data system network
● FTTH CATV Optic fiber waterproof pigtail


Specifications

SPECIFICATION: fiber optic pigtails

Connector Type

LC/FC/ST/SC Waterproof Pigtail

Fiber Type

Single-Mode

Cable Diameter

9.8 ,11.8

Insertion Loss

PC≤0.20dB UPC≤0.20dB APC≤0.30dB

Return Loss

PC≥40dB UPC≥50dB APC≥60dB

Working Condition

-40℃ to +75℃

End Face Geometry

The radius of curvature : 10-25(PC/UPC) 5-12(APC)

Apex Offset : 0-50um

Fiber height : -100 to +100nm

Characteristic

High precision alignment

Proof erosion body

Comply with ROSH

Material comply with the requirement of UL 94V-0

The connector comply with the standard of NTT/TELCORDIA/IEC/ITU

Cable type: GJA-II-YX2-02Xn

Cable Size:8.9±0.5mm

Cable weight kg/km: 58.1

Tensile Strength Long/Short Term (N):200/660

Crush Resistance Long/Short Term (N):300/1000

Bending Radius Static/Dynamic(MM): 20D/10D


G.652

G.655

50/125μm

62.5/125μm



Attenuation

@850nm



≤3.0 dB/km

≤3.0 dB/km

(+20°C)

@1300nm



≤1.0 dB/km

≤1.0 dB/km


@1310nm

≤0.36 dB/km

≤0.40 dB/km




@1550nm

≤0.22 dB/km

≤0.23dB/km



Bandwidth (Class A)

@850nm



≥500 MHz·km

≥200 MHz·km

@1300nm



≥1000 MHz·km

≥600 MHz·km

Water proof cables includes 4c, 6c,8c; SM, MM,ST,SC,LC,DIN,MTRJ/D4/MU/E2000, Polishin
