MXT-P02 series
MXT
Overview

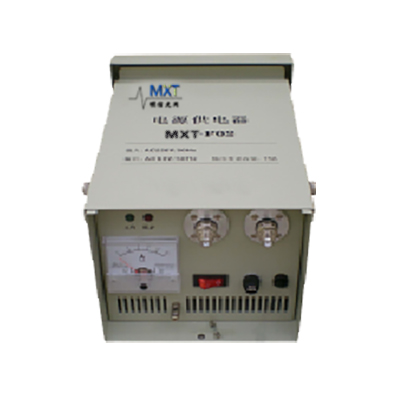

MXT-P02 series field power supply equipment are particularly designed and manufactured for concentrative power supply of amplifier, optical receiver for CATV network. It consists of power supply transformer, power supply inserter and over-current and over-voltage protecting circuit. Power supply can be one-way, or two-way. When there is overload or short circuit, it will alarm and prompt automatically, and at the same time cut off output to prevent malfunction enlarging. When overload malfunction is removed, power supply will come back to operating status automatically.
Specifications
P02 power supply
Items | Units | Parameters | |||
MXT-P02-3A | MXT-P02-6A | MXT-P02-10A | MXT-P02-15A | ||
Input Voltage | V | AC220±15% | |||
Output Voltage | V | AC60±1.5V(Input Voltage AC220V) | |||
Output Current | A | 3.0 | 6.0 | 10.0 | 15.0 |
Protect Current | A | ≥3.5 | ≥6.5 | ≥10.5 | ≥15.5 |
Weight | kg | 7.2 | 8.4 | 10.0 | 14.3 |
Power inserter
Frequency Range | Insertion Loss | Return Loss | Current Passing Capacity |
MXT-P02 | |||
5~30MHz | ≤1.2dB | ≥14 dB | 10A/each port |
30~550MHz | ≤1.0dB | ≥16 dB | |
550~862 MHz | ≤1.5dB | ≥12 dB |
Overview
MXT-P02 series field power supply equipment are particularly designed and manufactured for concentrative power supply of amplifier, optical receiver for CATV network. It consists of power supply transformer, power supply inserter and over-current and over-voltage protecting circuit. Power supply can be one-way, or two-way. When there is overload or short circuit, it will alarm and prompt automatically, and at the same time cut off output to prevent malfunction enlarging. When overload malfunction is removed, power supply will come back to operating status automatically.
Specifications
P02 power supply
Items | Units | Parameters | |||
MXT-P02-3A | MXT-P02-6A | MXT-P02-10A | MXT-P02-15A | ||
Input Voltage | V | AC220±15% | |||
Output Voltage | V | AC60±1.5V(Input Voltage AC220V) | |||
Output Current | A | 3.0 | 6.0 | 10.0 | 15.0 |
Protect Current | A | ≥3.5 | ≥6.5 | ≥10.5 | ≥15.5 |
Weight | kg | 7.2 | 8.4 | 10.0 | 14.3 |
Power inserter
Frequency Range | Insertion Loss | Return Loss | Current Passing Capacity |
MXT-P02 | |||
5~30MHz | ≤1.2dB | ≥14 dB | 10A/each port |
30~550MHz | ≤1.0dB | ≥16 dB | |
550~862 MHz | ≤1.5dB | ≥12 dB |
