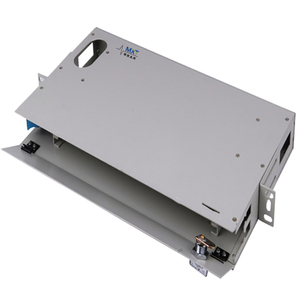

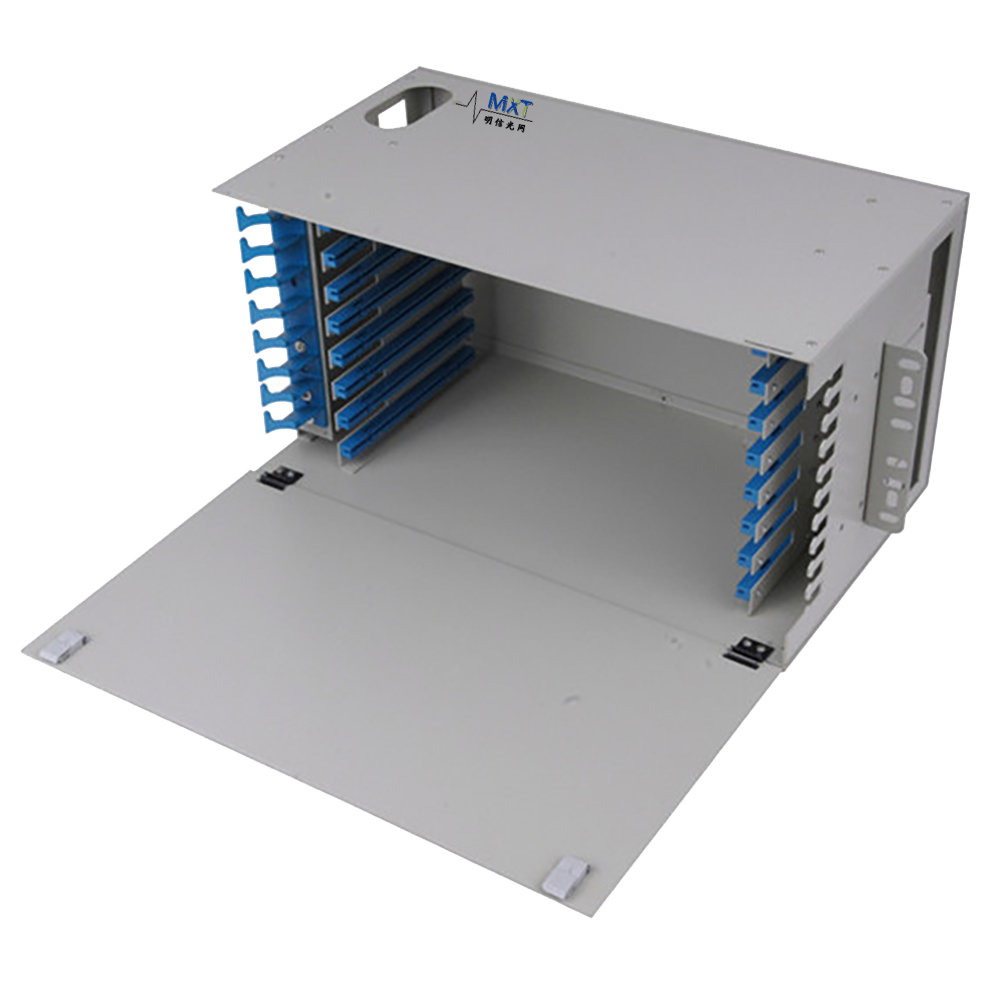

Fiber Optic Distribution Frame ODF-MXT96

Product Description
Optical Distribution Frame (ODF) is integrated components in any fiber management system to handle termination and cross-connection of cables. Pre-terminated ODFs with cables are pre-installed with connectors and cable for quick and easy installation. Units with pre-terminated cables offer advantages such as faster installation, resulting in shorter time to revenue as well as guaranteed quality and performance. We offer optical distribution frame in different size, such as 1U 12 ports, 1U 24 ports, 2U 36ports, 3U 48 ports, 4U 72 ports. Several cable options are available.

Functions
● Optical cable fixation and protection
● Optical cable termination
● Patching
● Protection of optical fiber and pigtail

Key Features
● For standard 19' racks use (other rack width options available on request)
● Fully stable patch panel, no risk of movement
● Protected patch panel offers secure environment for adapters, patch cords and pigtails
● Top quality steel with cover by electrostatic painted ensures the strong body and pleasing appearance
● Easy for installation of inlay, convenient to expand capacity, obliquity of adapter is 30°
● Height: depends on capacity, one Integrated Splice & Distribution unit which has the capacity of 12 core within 1U height
● ROHS compliant

Application
● Telecommunications subscriber loopFiber to the home (FTTH)
● LAN/WAN
● CATV

different size  1U 12 ports, 1U 24 ports, 2U 36ports, 3U 48 ports, 4U 72 ports
adapter interface sc,fc,lc,st,e2000...
fiber cores 12 port,24 port,36port,48port,72port,96port,144port ,288port

Specifications
