MXT5204W series
MXT
MXT5204W series is the EOC slave based on HomePlug AV solution for Ethernet access over coax. It works together with EOC master which is based on HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking.

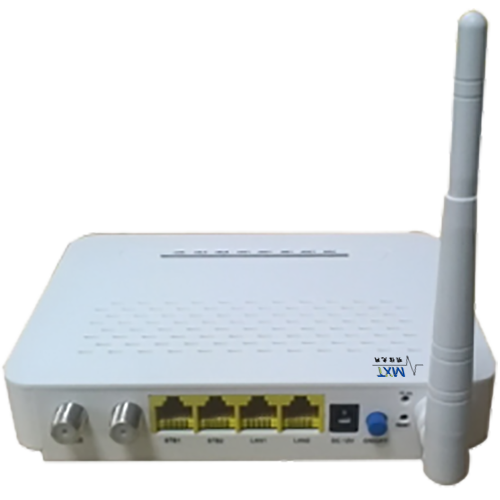

MXT5204W series is the slave with 4 Ethernet ports and WIFI.
MXT5204W series is based the Qualcomm chipset solution，with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference. The PHY Layer speed is 600Mbps,the MAC Layer throughput is up to 320Mpbs.
Features
● Based on HomePlug AV solution and Qualcomm chipset
● 7.5-65Mhz frequency for EOC signals., no influence on CATV Service
● PHY Layer speed 600Mbps
● Support data encryption
● 4*100M auto-negotiation Ethernet port
● Support the isolation of slave under one master
● Support Port-based VLAN and 802.1q VLAN
● Support bandwidth limited
● Support QOS configuration based on slave port or VLAN.
● Support broadcast storm control.
● Support data packages count
● Automatically get configurations from EOC Master when Newly connected with powered on
● Support WEB,CLI and SNMP management
● Support on-line upgrading
EOC Specification
Item | Parameters | MXT5204W |
Interface & indicator | RF interface | 1*TV(RF signal) OUTPUT, metric/inch F connector 1*CABLE(MIX)INPUT, metric/inch F connector |
Ethernet interface | 4*10/100M auto-negotiation, RJ45 | |
Power interface | 1*DC12V power supply interface | |
LED indicators | 1 x power indicator 1 x system indicator 1 x CABLE indicator 1 x WIFI indicator LAN indicator(each Ethernet port has 1 indicator) | |
Performance parameters | RF parameters | Frequency:7.5-65MHz Output level:110±5dBuv |
Receive sensibility:-65dBuv Return loss:>16dB Output impedance:75Ω | ||
Transmission | PHY Layer:600Mbps Throughput on MAC Layer:320Mbps | |
Modulation Mode | OFDM– 2690-carriers | |
Working Mode | TDMA/CSMA | |
Encryption Mode | AES-128 | |
Standard | EOC Standard | IEEE P1901(Draft) HomePlug AV |
Ethernet Standard | IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q | |
Software | Network Management | WEB, CLI, SNMP |
Software Features | VLAN, QOS, Bandwidth Control, Broadcast storm limitation | |
Physical Features | Power supply & Consumption | Power adapter:12VDC 1A Power consumption：<8W |
Dimension | 160×120×32mm | |
Weight | 0.5kg | |
Environment Attribute | Work temperature：0～50℃ Stock temperature：-40～85℃ Work humidity：10%～90%, non-condensation Stock humidity：10%～90%, non-condensation |
WIFI Specification
Item | Parameter | |
Performance parameters | Operating Mode | Router or bridge |
WIFI antenna | 1 external antennas, 1 built in antennas | |
Throughput | IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 300Mbps | |
Frequency | 2.412 ~ 2.472 GHz | |
Channel | 13*Channel, configurable to meet the standard of USA, CCanada, Japan and China | |
Modulation | DSSS , CCK and OFDM | |
Coding | BPSK, QPSK, 16QAM and 64QAM | |
RF receive sensitivity | 802.11b: -83dBm @ 1 Mbps; -80dBm @ 2 Mbps; -79dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -85dBm @ 6 Mbps; -84dBm @ 9 Mbps; -82dBm @ 12 Mbps; -80dBm @ 18 Mbps; -77dBm @ 24 Mbps; -73dBm @ 36 Mbps; -69dBm @ 48 Mbps; -68dBm @ 54 Mbps 802.11n 20MHz: -74dBm @ 65 Mbps; -70dBm @ 130 Mbps; 802.11n 40MHz: -70dBm @ 135 Mbps; -67dBm @ 300 Mbps; | |
RF output lever | 802.11b: 17 ±0.5dBm @11Mbps 802.11g: 15 ±0.5dBm @ 54 Mbps; 16 ±0.5dBm @ 48 Mbps; 17 ± 1dBm @ 6 ~ 36 Mbps 802.11n 20MHz: 14 ± 0.5dBm @ 130 Mbps; 15 ± 0.5dBm @ 78 Mbps; 18 ± 0.5dBm @ 6.5 Mbps 802.11n 40MHz: 14 ± 0.5dBm @ 300 Mbps; 15 ± 0.5dBm @ 162 Mbps; 18 ± 0.5dBm @ 13.5 Mbps | |
Encryption Mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) | |
Ordering Information
Product Name | Product Model | Descriptions |
MXT5204W scheme wifi EOC Slave | MXT5204W2-R1 | 4 LAN user ports, support wifi, plastic casing, external power supply adapter |
MXT5204WL-R1 | 2*10/100M Ethernet interface, 2 LAN user ports, support wifi, plastic casing, external power supply adapter |
