MXT
CABLE STRUCTURE
Structure item | Material name | Physical dimension | remark |
Inner Conductor | Bare copper | 4 cores,18*0.10mm stranded per core | Cores twisted,2pairs |
Dielectric | Special pvc | 1.17mm PVC insulation | Green and yellow twisted ; White and brown twisted; |
Shield 1 | Plastic foil | 3.60 mm Foil | Wrap cores |
Shield 2 | Tinned copper wire | 96 *0.12mm braiding (coverage 85%) | Coverage 85% |
Sheath | RoHS PVC | 5.60mm PVC sheath | Grey color RAL 7032 |
TECHNICAL DATA
Technical item | Data |
Impedance | Around 78 ohms |
Capacitance | Core/core :120 pF/m , Core/screen :240 pF/m |
Inner conductor resistance | ≤ 138 ohm/km |
Insulation resistance | ≥ 20 Mohm/km |
Temperature range | Flexing : -5℃ ~ + 80℃ Fixed installation :-30℃ ~ + 80℃ |
Load | 1,5A |
Min bending radius | Flexing : 10*cable Ǿ ,Fixed installation : 5*cable Ǿ |
Inductance | Around 0.65 mH/km |
Operating Voltage | 350 V |
Breakdown Voltage | ≥ 2400 V |
Test Voltage | Core/core :1200V, Core/screen : 800V |

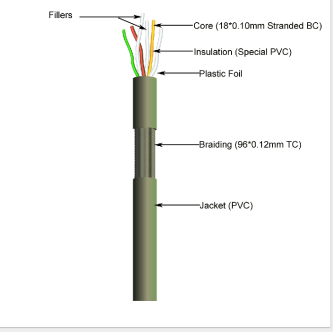

Drawing of cable

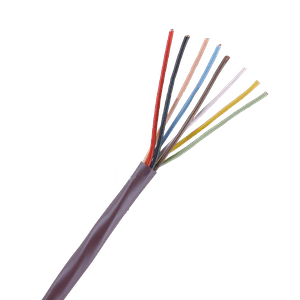

Picture of cable
