ADSS
MXT
Jacket | PE | Color | Black or Customized |
Structure | Standed Looose Tube | Fiber Count | 2-72 Cores |
Fiber Type | Single Mode/Muti Mode/ G.652D/G.657A1/A2 | CSM | Fiberglass Reinforced Plastic(FRP) |
Strength Member | Kevlar/Aramid Yarn | Application | Outdoor Aerial Cabling System |
Installation | Power Transmision Line | Product Name | ADSS Aerial Standed Self Supporting Power Tramsmisson Line Cable |

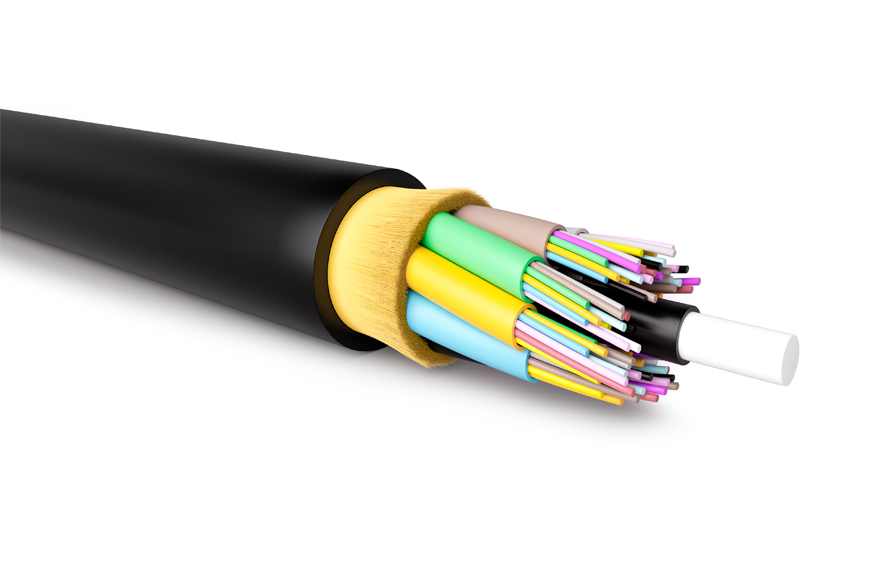

ADSS cable is loose tube stranded. Fibers, 250um, are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is
completed with PE or AT (anti-tracking) outer sheath.
Characteristics
● Two jacket and stranded loose tube design. Stable performance and compatibility with all common fiber types Can be installed without shutting off the power, mainly installed at existing 220kv or lower voltage power lines.
● Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25 KV.
● Aramid yarn strength member ensure tensile strength,good performance and temperature.
● Crush resistance and flexibility.
● PSP enhancing moisture-proof.
● Small diameter,light weight and friendly installation.
● Long span lenths and the largest span is over 1000m.
Specification
Ref. Outer diameter mm | Ref. Weight kg/km | Rec. Daily max. working tension kN | Max. Allo wable working tension kN | Break strength kN | Strength member CAS mm2 | Modulus of elasticity kN/mm2 | Heat expansion coefficient x10-6/K | |
PE sheath | AT Sheath | |||||||
11.8 | 117 | 124 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
12.0 | 121 | 129 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
12.3 | 126 | 134 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
12.6 | 133 | 141 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
12.8 | 138 | 145 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 |
13.1 | 145 | 153 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
13.5 | 155 | 163 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 |
13.8 | 163 | 171 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 |
14.4 | 177 | 186 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 |
14.6 | 182 | 191 | 10.5 | 28 | 70 | 33.0 | 19.6 | 0.1 |
14.8 | 195 | 204 | 12.75 | 34 | 85 | 40.0 | 20.1 | 0.1 |
1.Standard Packaging
Rolled by wooden drums.2000m to 5000m/drum or other required.
2. Sheath mark
The following printing is applied at 1-meter intervals.
a. Supplier: MXT or as customer require
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length mark in meters
Quote Request Information
1. Fiber Count: 2 to 72 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
Jacket | PE | Color | Black or Customized |
Structure | Standed Looose Tube | Fiber Count | 2-72 Cores |
Fiber Type | Single Mode/Muti Mode/ G.652D/G.657A1/A2 | CSM | Fiberglass Reinforced Plastic(FRP) |
Strength Member | Kevlar/Aramid Yarn | Application | Outdoor Aerial Cabling System |
Installation | Power Transmision Line | Product Name | ADSS Aerial Standed Self Supporting Power Tramsmisson Line Cable |
ADSS cable is loose tube stranded. Fibers, 250um, are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is
completed with PE or AT (anti-tracking) outer sheath.
Characteristics
● Two jacket and stranded loose tube design. Stable performance and compatibility with all common fiber types Can be installed without shutting off the power, mainly installed at existing 220kv or lower voltage power lines.
● Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25 KV.
● Aramid yarn strength member ensure tensile strength,good performance and temperature.
● Crush resistance and flexibility.
● PSP enhancing moisture-proof.
● Small diameter,light weight and friendly installation.
● Long span lenths and the largest span is over 1000m.
Specification
Ref. Outer diameter mm | Ref. Weight kg/km | Rec. Daily max. working tension kN | Max. Allo wable working tension kN | Break strength kN | Strength member CAS mm2 | Modulus of elasticity kN/mm2 | Heat expansion coefficient x10-6/K | |
PE sheath | AT Sheath | |||||||
11.8 | 117 | 124 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
12.0 | 121 | 129 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
12.3 | 126 | 134 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
12.6 | 133 | 141 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
12.8 | 138 | 145 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 |
13.1 | 145 | 153 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
13.5 | 155 | 163 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 |
13.8 | 163 | 171 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 |
14.4 | 177 | 186 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 |
14.6 | 182 | 191 | 10.5 | 28 | 70 | 33.0 | 19.6 | 0.1 |
14.8 | 195 | 204 | 12.75 | 34 | 85 | 40.0 | 20.1 | 0.1 |
1.Standard Packaging
Rolled by wooden drums.2000m to 5000m/drum or other required.
2. Sheath mark
The following printing is applied at 1-meter intervals.
a. Supplier: MXT or as customer require
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length mark in meters
Quote Request Information
1. Fiber Count: 2 to 72 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
