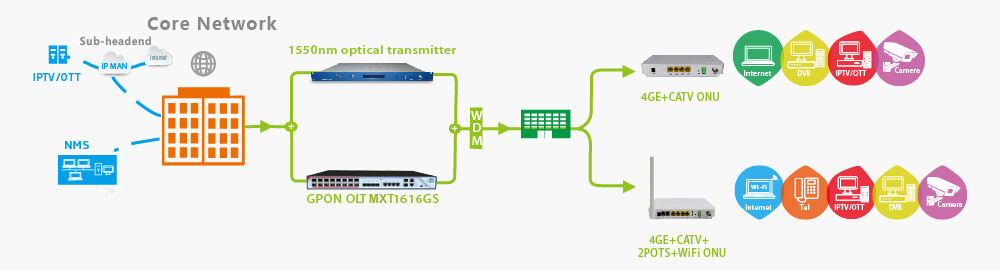

Network Application

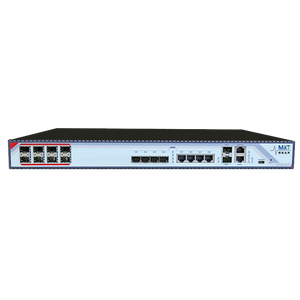

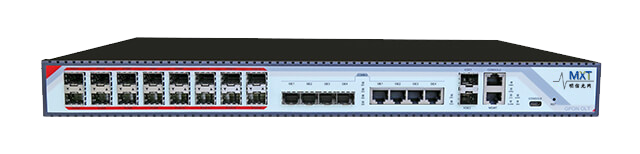

Product GPON OLT MXT1616GS-R2 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 16 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 2048 GPON terminals accessing in for the most. This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
Features
● Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry
● Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol
● 1U height 16PON OLT product in compact design of Pizza-Box
● Layer 2 Switching Function
OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. With working mode of switch, isolate and one by one, OLT supports varieties of layer 2 functions like TRUNK, VLAN, rate limit, queue technology, flow control technology, ACL and so on, which provides technical guarantee for the development of multi-service integrated.
●Layer 3 Switching Function
OLT supports layer 3 static router and multicast router
●QOS Guarantee
GPON Products maintains fully-improved DBA with excellent Qos service capabilities. DBA meets different Qos requirements from different service flow in latency, jitter, packet loss rate.
●Easy-to-Use Management System
Support management method of CLI, SNMP, TELNET, SSH and WEB and meet OMCI standard, through OMCI channel protocol service management can be realized, including ONT function parameter set, T-CONT business lines and amount, Qos parameters, configuration information request, performance statistics, auto-reporting of running events in system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.
Specification
Item | MXT1608GS-R2 | |
Management Rack | Type | 1U 19-inch standard box |
Slot | 2 power module slot | |
Uplink Port | COMBO port | 4 10/100/1000M auto-negotiation Ethernet ports |
4 SFP interfaces | ||
10-Gigabit | 2 SFP+ interfaces | |
PON port | Quantity | 16 |
Physical interface | SFP slot | |
Interface type | ITU-TG.984.2 Class B+/Class C+ | |
Max splitting ratio | 1:128 | |
Management Port | 1 100/1000BASE-Tx out-band Ethernet port | |
1 CONSOLE local management port | ||
USB Port | 1 Type-3 interface | |
PON Port attribute | Transmission distance | 20KM |
Port rate | Downstream: 2.5Gbps Upstream: 1.25Gbps | |
Wavelength | Forwarding: 1490nm Receiving: 1310nm | |
Interface type | SC/UPC | |
Fiber type | 9/125μm SMF (Single Mode Fiber) | |
Light transmission power | Class B+ +1.5～+5dBm Class C+ +3～+7dBm | |
Receiving sensitivity | Class B+ -28dBm Class C+ -30dBm | |
Saturation power | Class B+ -8dBm | |
Network management method | Support CLI、SNMP、TELNET、SSH、WEB | |
Business capabilities | Support log, upgrade, management function of device, state snooping, configuration management, and user management. | |
Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. | ||
Layer 2 switching configuration management: Like static router, RIP-V1/V2. | ||
PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. | ||
Backplane Bandwidth | 136G | |
Size | 440mm(L)*391mm(W)*44mm(H) | |
Weight | 4kg | |
Power supply | 220VAC | AC: 90V～240V，47/63Hz |
-48DC | DC:-36V～-72V | |
Support BBU | AC: 11V～14V | |
Maximum power | 70W | |
Working environment | Working temperature | 0～50℃ |
Storage temperature | -40～85℃ | |
Relative humidity | 5～90% (Non-condensing) | |
Ordering information
Product Name | Model | Product Description |
Standalone OLT | MXT1616GS-R1 | 1 U standalone GPON OLT with 16 PON ports, 1 USB interface, 4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC/-48VDC, support dual power redundancy configuration |
Ethernet SFP Optical Module | AS60-EG33200-CPLD | 20KM twin-fiber type |
AS60-EG35400-CPSS | 20KM single fiber type | |
AS60-EG53400-CPSS | ||
Ethernet SFP+ Optical Module | AS60-EQ33101-CPLD | 20KM twin-fiber type |
AS60-EQ21201-CPLS | 20KM single fiber type | |
AS60-EQ12201-CPLS | ||
OLT SFP Optical Module | AS60-PG43205-CPSS3 | ITU-TG.984.2 Class B+ |
AS60-PG43206-CPSS4 | ITU-TG.984.2 Class C+ |
Product Name | Model | Product Description |
Standalone OLT | MXT1616GS-R2 | 1 U standalone GPON OLT with1 USB interface, 16 PON ports, 4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC/-48VDC, support dual power redundancy configuration, support BBU |
Ethernet SFP Optical Module | AS60-EG33200-CPLD | 20KM twin-fiber type |
AS60-EG35400-CPSS | 20KM single fiber type | |
AS60-EG53400-CPSS | ||
Ethernet SFP+ Optical Module | AS60-EQ33101-CPLD | 20KM twin-fiber type |
AS60-EQ21201-CPLS | 20KM single fiber type | |
AS60-EQ12201-CPLS | ||
OLT SFP Optical Module | AS60-PG43205-CPSS3 | ITU-TG.984.2 Class B+ |
AS60-PG43206-CPSS4 | ITU-TG.984.2 Class C+ |
